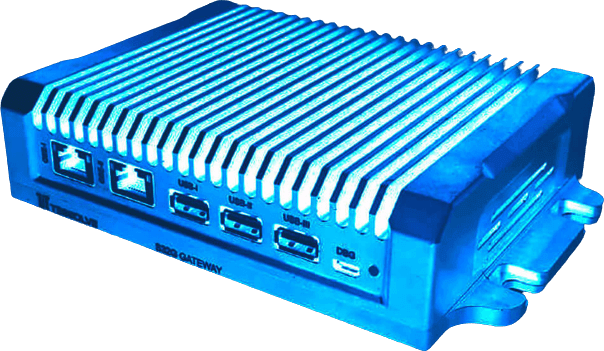

Tera Img 1
Tera Logo

Application gateway for data to real-time predictions

    What’s TERA For?

    Transforming data into real-time predictions at scale

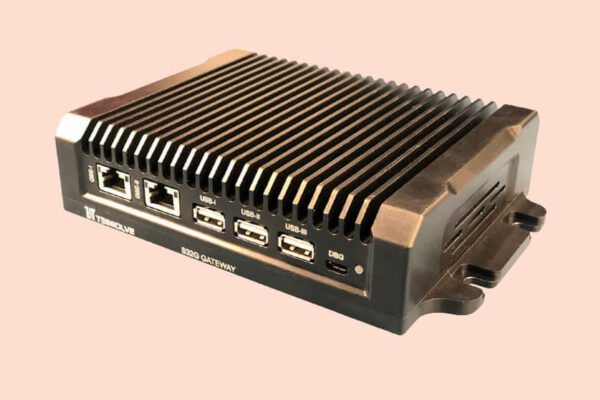

    Tessolve introduces a compact, high-performance application gateway based on S32G274A SMARC SoM targeted for vehicle networking and industrial applications. This box connects to sensor data over a can and transfers to the cloud over a wireless interface offering rich I/O interfaces and computes capabilities.

    We Introduce Tera, Tessolve’s Edge!

    Using the TERA box, customers can advantage of the massive amount of data available for vehicles. This can be used for various advantages of predictive and prescriptive maintenance, vehicle usage analysis, and more! Tera has the super compute capability using NXP S32G2 PROCESSOR. Tera bridges the connection between vehicle data and the cloud and helps customers get meaningful insights into vehicle analytics. At Tessolve, our mission is to present on all vehicles connecting sensor data to the cloud with minimal cost.

    Silicon Partner

    Cloud Partner

    OTA Software Partner

    Outlining The Features

    Application gateway with multiple network interfaces

    – Multiple network interfaces, featuring,
    = 6x CAN/CAN FD, 2x FlexCAN
    = 2x GbE Ports

    • 3x USB 2.0 supported through onboard Hub
    • Operating System: Linux OS on A53 & RTOS on M7
    • SIM and SD Card slots
    • Box Dimensions: 190mm x 128mm x 41.75mm, Weight: 700g
    • I/o Connectivity: 2x M.2 Connectors
    • Wireless Connectivity: Wi-Fi 6, 5G/LTE
    • GPS + GLONASS Module
    • IMU 6-Axis Sensor
    • Automotive Power Supply

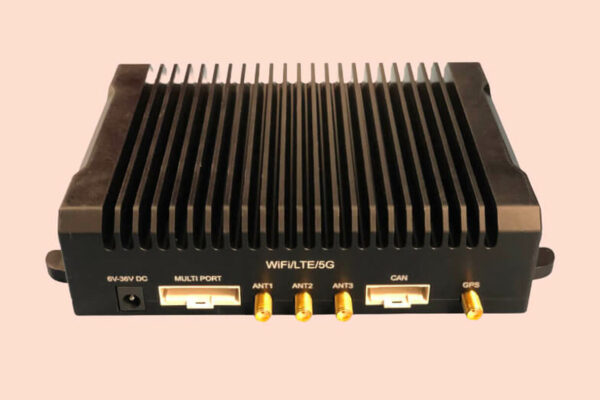

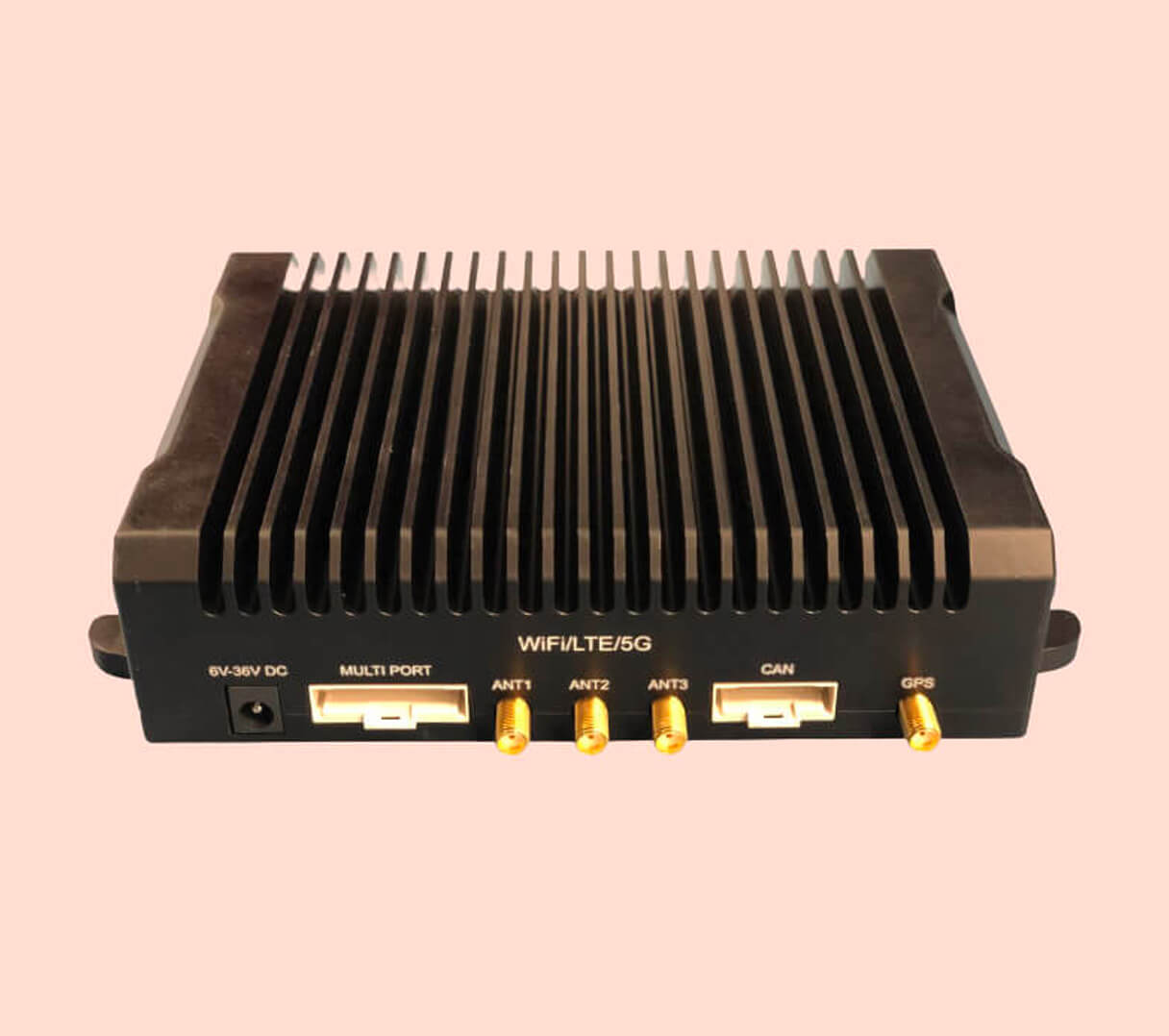

    Tera IMG 02

    Part Number – TGU

    • M2A-APBRDS32-TGU-AT

    Description

    • Telematics Gateway Application Unit
    • Temp : 40oC to 105oC
    TERA-Benifit-icn

    Real-time data and signal sharing

    TERA Benifit Icn 02

    Integrated navigation Capability

    TERA Benifit Icn 03

    High Speed In-Vehicle Networking

    TERA Benifit Icn 04

    Secure over-the-air software updates

    TERA Benifit Icn 05

    Predictive and prescriptive vehicle health

    TERA Benifit Icn 06

    Conversational AI messaging

    TERA Benifit Icn 07

    Improved roadway-centric coverage

    TERA Benifit Icn 08

    Cellular V2X communication at scale

    Prescriptive Maintenance

    Prescriptive maintenance

    Enhanced Safety

    Enhanced safety

    Collision Avoidance

    Collision avoidance

    Predictive Quality Of Service

    Predictive quality of service

    Driver Behavior

    Driver behavior

    Remote Operation

    Remote operation

    Personalized Video Streaming

    Personalized video streaming

    Augmented Realityar Applications

    Augmented reality(AR) applications

    More About TERA

    Download Datasheets

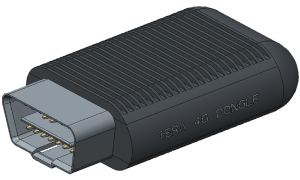

    Tera 4g Obd Dongle

    TERA 4G OBD Dongle

    Tera Lite

    TERA Lite 4G

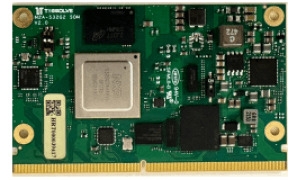

    Nxp S32g2 Application Gateway

    NXP S32G2 Application Gateway

    Tera Real Time Ai 1

    TERA Real Time AI

    Aws Iot Greengrass Installation On Terabox Gateway

    AWS IoT Greengrass Installation on Terabox Gateway

    Getting Started

    TERA In Vehicle Networking

    Real Time

    Real-Time Data and Signal Sharing

    Tera uses NXP S32G2 Processor, which facilitates the super compute capability. Moreover, as it comprises features like GPS + GLONASS Module, it provides accurate positioning and navigation capabilities in real time.

    Performance

    High-Speed In-Vehicle Networking

    Tera utilizes the IMU 6-Axis Sensor typically includes two types of sensors: a 3-axis accelerometer and a 3-axis gyroscope. These sensors capture data about objects’ movement and orientation in three-dimensional space. Hence provides high-speed in-vehicle networking.

    Prediction

    Predictive and Prescriptive Vehicle Health

    “Predictive” and “prescriptive” are terms often used in the context of vehicle health monitoring and maintenance. Tera connects to sensor data over a can and transfers to the cloud over a wireless interface offering rich I/O interfaces and computing capabilities. Hence, providing an optimal scope of data analytics and predictive modeling techniques.

    Car Info Circuit Min

    Experience The Impact Of TERA With Tessolve
