AMS design plays a pivotal role in designing the new-age VLSI physical design. It seamlessly integrates analog and mixed signals onto a single chip, paving the way for the next generation of electronic devices. Analog signals are responsible for tasks like signal processing and mixed signals handle the versatility of digital components.

AMS design unifies the continuous and discrete aspects of electronic signals. Moreover, this ensures the effective communication of digital processors and analog sensors. This integration is vital in the new age of devices like IoT. This blog delves into the crucial role of AMS design, exploring both its opportunities and challenges in driving innovation and continuous improvement in VLSI design.

Let’s Explore Opportunities in AMS Design

  • Integration of Analog and Digital Components
    The integration of analog and digital components into a single chip yields several advantages for VLSI hardware design. This integration not only enhances overall system performance but also streamlines chip area and reduces costs. With the amalgamation of analog and digital elements, executing complex features especially in the era of IoT, becomes more feasible. This seamless connection between analog and digital components is pivotal for the functionality of modern-day electronic devices.
  • Power Efficiency
    Power efficiency is directly related to the performance of an electronic devices. Employing low-power methods, such as power gating, clock gating, and voltage scaling, ensures energy efficiency, durability and improved performance. This emphasis on optimal power consumption contributes significantly to the operational life of a device.
  • Advanced Manufacturing Technologies
    AMS design leverages advanced technologies like FinFET, ensuring improved integration density and superior transistor performance. However, designing VLSI circuits with nanoscale technology introduces its own set of challenges that require careful consideration.
  • Sensor Integration and Data Conversion
    In today’s interconnected world, every device comes with a sensor and plays a vital role in various industries, such as healthcare, automotive and IoT. However, the integration of sensors with analog and digital components in a seamless manner can be challenging. Additionally, high-speed data converters are a critical aspect in sensing applications.

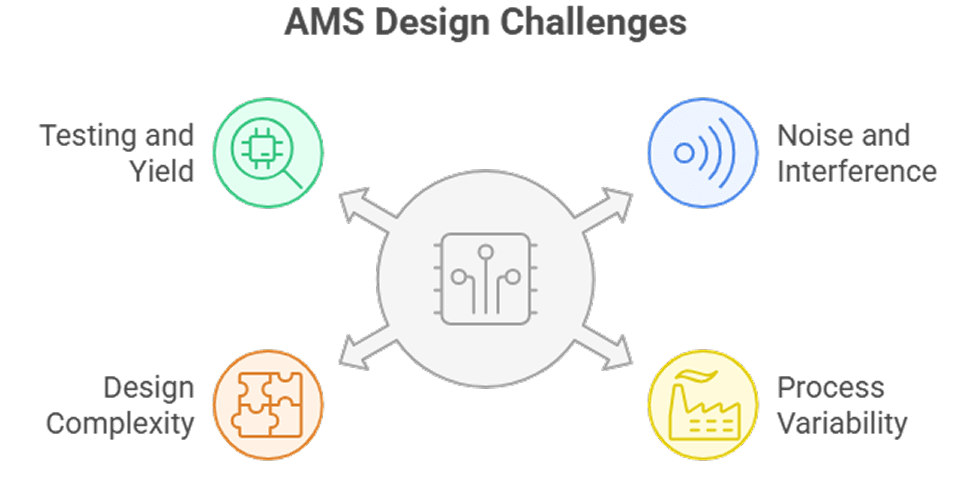

The Common Challenges in AMS Design

  • Noise and Interference
    In AMS design, the cross interference can be challenging, as one part of the signal can interfere with other parts of the signal. This can lead to signal distortion and reduced signal-to-noise ratio, resulting in an overall impact on the functionality of electronic devices.
    Mitigating these issues requires effective strategies including shielding, filtering, and physical isolation techniques.
  • Process Variability
    The inherent variability in semiconductor manufacturing process can lead to deviations in transistor characteristics, impacting analog circuit performance. Additionally, process variability can lead to non-uniformity in parameters such as transistor threshold voltage and transconductance. Due to this, predicting the behavior of VLSI circuits can be challenging.
    To address process variability, engineers employ statistical design techniques. This includes using statistical models, tolerance analysis, and advanced simulation methods to account for manufacturing variations.
  • Design Complexity
    Integrating analog and digital components on a single chip introduces complexities due to the inherently different nature of these domains. Achieving seamless integration requires a deep understanding of both domains. Moreover, simulating and verifying AMS designs is inherently complex due to the interaction between analog and digital blocks.
  • Testing and Yield
    Testing analog circuits poses unique challenges as compared to digital circuits due to the continuous nature of analog signals. High yield is crucial for cost-effectiveness.
    VLSI design service providers employ Design for Manufacturability (DFM) techniques, optimizing process parameters and utilizes redundancy in critical components.
Signal Integrity Img 2

Best Practices for AMS Design in VLSI Circuits

  • Clearly define specifications and requirements for analog and mixed-signal circuits.
  • Understand trade-offs between power consumption, speed, chip area and accuracy.
  • Prioritize design goals based on application needs.
  • Utilize accurate simulation tools for comprehensive analysis.
  • Include parasitic elements in simulations for realistic performance evaluation.
  • Implement proper grounding, shielding and noise reduction techniques.
  • Enhance testability by incorporating on-chip test structures and test points.

Wrapping Up!

Exploring the opportunities and challenges in AMS design emphasizes the need for continuous innovation. This is crucial for staying ahead in a technologically advanced world and shaping the future of VLSI hardware design circuits with AMS design. Tessolve, a VLSI design service provider specializing in high-quality analog design, is equipped to handle various nodes varying from 350 nm to 3nm.
